False Ceiling, RCC Slab, or Neither: How Your Ceiling Decides Which LED Lights for Room Will Actually Fit

The lighting plan usually arrives after the false ceiling drawing is signed. By then the ceiling void has already been fixed at whatever depth the carpenter needed for the cove, and every fixture decision afterwards is constrained by a number nobody in the lighting conversation was asked about.

This is the most common reason a chosen fixture gets swapped on site. The specified downlight is 82 mm deep, the void is 90 mm, the driver has nowhere to sit, and a shallower unit with worse optics goes in instead. The LED lights for room you end up living with are decided by the ceiling, not the catalogue.

So the sequence needs reversing. This guide covers the depths, cutout sizes and clearances that govern which LED lights for room can physically be installed, across the three ceiling conditions Indian homes actually present. Fix these first and the LED lights for room you specify are the ones that get built.

How Much Ceiling Depth Do Recessed LED Lights for Room Need?

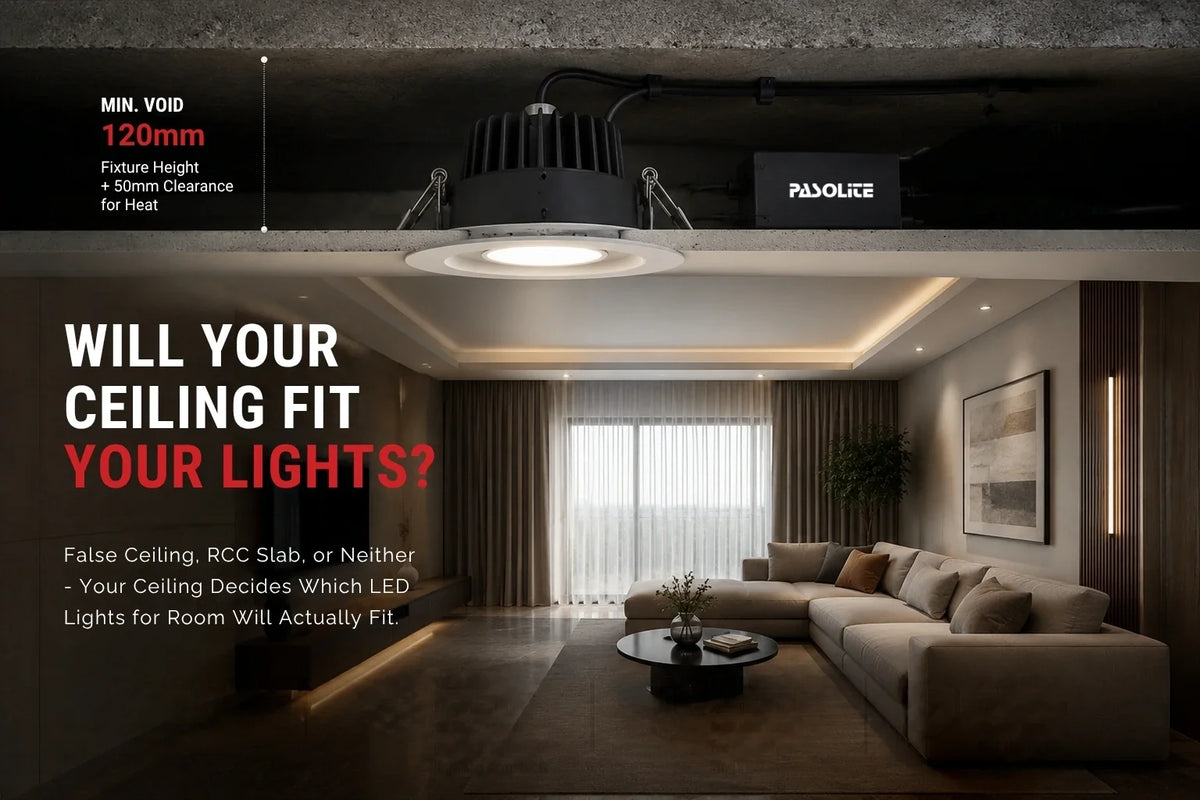

The working rule is fixture height plus 50 mm. A downlight body measuring 70 mm tall needs a minimum void of 120 mm, and that margin is for heat dissipation, not for the hand fitting it. Anything tighter traps warm air against the driver and shortens its life well before the LED itself degrades.

Cutout diameter and recess depth move together, so the two have to be settled as a pair rather than one at a time.

Standard cutout diameters against the minimum ceiling void required.

Cutting to within 2 mm of the stated diameter matters more than it sounds. A 3 mm overcut leaves the trim ring floating with a visible shadow gap, and no amount of putty afterwards makes that line read as clean.

Three Ceiling Types, Three Different Answers

1. Gypsum Board on GI Framing

This is the most forgiving condition and the most common in new metro apartments. A standard drop of 150 to 250 mm below the slab gives enough void for almost any 3-inch or 4-inch fixture, and gypsum cuts cleanly, so most LED lights for room schemes fit without compromise.

It also stays serviceable. A board can be re-opened and patched, so a driver replacement four years from now is a two-hour job rather than a ceiling rebuild.

2. POP on Chicken Mesh

Plaster of Paris over mesh gives the same void depth but behaves very differently once set. Cutting a fresh opening after the ceiling is finished cracks the surrounding plaster, and the repair is visible under any grazing light.

Every fixture position therefore has to be final before plastering begins. Pasolite recommends marking cutouts physically on the mesh, at full size, and walking the room with the client before the first coat goes on.

3. Bare RCC Slab

With no false ceiling there is no void at all, which rules out recessed fixtures entirely unless conduit and boxes were cast into the slab at the structural stage. That decision is made months before anyone is thinking about lighting.

The alternatives are genuinely good, and often better for a period property or a high-ceilinged room. Surface-mounted cylinders, magnetic track, pendant clusters and wall-washing profiles all mount directly to the slab and keep every millimetre of the original height.

What each ceiling condition allows, and what it costs you.

The Height You Lose, and Whether You Can Afford It

A typical Indian apartment gives about 2.9 to 3.05 metres slab to slab. Take 200 mm for a false ceiling and the room finishes at roughly 2.7 to 2.85 metres, which is comfortable. Take the same 200 mm from an older 2.75 metre room and you are down to 2.55 metres, where a tall wardrobe starts touching the ceiling line.

Three tests decide whether the drop is worth taking:

• Window head height. If the false ceiling finishes below the top of the window, the room will read as capped and the daylight will look truncated.

• Door frame line. A ceiling that lands within 150 mm of a 2100 mm door head creates an awkward band that no cornice detail resolves.

• Fan clearance. Blades need 200 to 250 mm below the ceiling to move air properly, and that gap comes out of the same budget.

Where the drop cannot be justified, a peripheral false ceiling with an open centre gives you cove lighting and a service route around the room while keeping full height in the middle. It is the most under-used detail in Indian interiors.

Heat, and Why Timber Ceilings Fail Differently

Gypsum and POP conduct heat away reasonably well. Plywood and timber do not, so a recessed fixture that runs happily in a plasterboard ceiling can sit 15 degrees hotter in a wood one and lose driver life accordingly.

In timber, increase the clearance above the fixture from 50 mm to at least 75 mm, and avoid packing insulation or wiring bundles against the housing. Where recessed LED lights for room are unavoidable in wood, a surface-mounted cylinder or a track solves the problem outright by keeping the driver in open air.

Three positions deserve extra caution in any ceiling material:

• Directly above a wardrobe. Warm air pools at the ceiling line and the fixture sits in the worst of it.

• Inside a narrow cove return. The void is shallow and the air is trapped on three sides.

• Adjacent to a concealed AC unit. Duct insulation packed against a housing is a common and invisible cause of early driver failure.

The Sequence That Prevents Rework

Almost every fixture substitution on site traces back to the same ordering error: the ceiling was designed before the lighting was. Running these six steps in order removes most of it.

1. Decide the lighting layers first: ambient, task, accent and any cove.

2. Choose the fixture family and record its body height and cutout diameter.

3. Set the false ceiling drop from that height plus 50 mm, not from the carpenter's default.

4. Check the finished ceiling height against window head, door head and fan clearance.

5. Mark every cutout at full size on the ceiling before boarding or plastering.

6. Confirm the driver location for each fixture, and that it can be reached later.

Because Pasolite manufactures in-house in Bangalore, body depth and cutout diameter can be matched to a void that is already fixed, and custom sizes are possible where a standard fixture will not fit. Every luminaire completes a 48-hour burn-in test before dispatch, which matters most for units that will sit inside a sealed ceiling for a decade.

Key Takeaways

•  Minimum ceiling void equals fixture body height plus 50 mm, increased to 75 mm in timber ceilings.

•  Cutout diameters run 65, 75, 100, 125 and 150 mm; cut within 2 mm or the trim ring shows a shadow gap.

•  Gypsum stays serviceable, POP does not, and a bare slab rules out recessed fixtures unless conduit was cast in.

•  A 200 mm drop is comfortable in a 3 metre room and punishing in a 2.75 metre one.

•  Check the ceiling line against window head, door head and fan clearance before committing to the drop.

•  Fix fixture depth before the ceiling drop, not after, or the ceiling will choose the fixture for you.

FAQs: LED Lights for Room

1. How much ceiling depth is needed for recessed LED lights?

Allow the fixture body height plus 50 mm. A 70 mm deep downlight needs a minimum void of 120 mm. The extra clearance is for heat dissipation around the driver, and reducing it shortens driver life long before the LED module itself begins to fade.

2. What are the standard downlight cutout sizes?

The common diameters are 65 mm, 75 mm, 100 mm, 125 mm and 150 mm, corresponding to 2.5, 3, 4, 5 and 6 inch nominal sizes. The 100 mm cutout is the default for general room lighting in most Indian homes. Cut to within 2 mm of the stated size.

3. Can recessed lights be installed without a false ceiling?

Only if conduit and junction boxes were cast into the RCC slab during construction. Otherwise a bare slab requires surface-mounted cylinders, magnetic track, pendants or wall-mounted fixtures. These preserve the full ceiling height and keep every driver accessible for service.

4. How much height does a false ceiling take away?

A standard gypsum or POP ceiling drops 150 to 250 mm below the slab. In a 3 metre room that leaves a comfortable 2.75 to 2.85 metres. In an older 2.75 metre room the same drop leaves 2.55 metres, which is tight once wardrobes and a ceiling fan are added.

5. Is POP or gypsum better for a lighting scheme?

Gypsum, in almost every case. Both give the same void depth, but a gypsum board can be reopened and patched invisibly for a driver replacement years later. Cutting into finished POP cracks the surrounding plaster and the repair stays visible under grazing light.

6. Do recessed fixtures need more clearance in a wooden ceiling?

Yes. Timber and plywood conduct heat far less effectively than plasterboard, so increase clearance above the housing from 50 mm to at least 75 mm and keep insulation and wiring bundles away from it. A surface-mounted fixture avoids the problem entirely.

Start With the Void, Not the Catalogue

Ceiling depth is not a detail that gets resolved later. It is the constraint that decides which fixtures are available to you, how much room height you keep, and whether anyone can service a driver in 2034 without opening the ceiling.

If you are at false-ceiling stage now, the Pasolite team can match body depths and cutouts to your drawing before the boarding goes up. Explore the indoor range, including recessed, surface, linear and track LED lights for room schemes, at pasolite.in or at the Bangalore showroom.
