Waterproof Outdoor Wall Lights: Up-Light, Down-Light, and the Beam Direction That Shapes Your Facade

A facade is designed twice. Once for daylight, when material, proportion, and colour do the work, and once for night, when light does. Indian architects have become precise about the day elevation. The night elevation is still treated as an afterthought, which is why so many well-built homes look ordinary the moment the sun goes down.

Why Beam Direction Matters More Than Wattage

Beam direction is the most underrated specification in exterior lighting. Wattage tells you how much light a fixture produces. Beam direction tells you what that light does to a wall. Take two identical waterproof outdoor wall lights, point one up and one down, and the same facade will read as two different buildings.

The reason is shadow. A wall lit straight-on looks flat because there are no shadows to describe its surface. A wall lit from a sharp angle, above or below, casts shadows into every joint and texture, and the eye reads that as depth. Choosing direction is choosing how much three-dimensionality the facade keeps after dark.

Up-Lighting: For Texture, Height, and Drama

Up-lighting mounts the fixture low and throws light vertically up the wall. It is the right choice when the surface has texture worth showing, because light raking upward exaggerates every ridge and joint and turns a plain wall into a feature.

Up-lighting also adds perceived height, which is why it suits double-height facades. The trade-off is spill. A fixture aimed at the sky wastes light and adds glare, so up-lights need a narrow, controlled beam, roughly 10 to 25 degrees for columns and 40 to 60 degrees for broad walls, plus shielding to keep stray light out of upstairs windows.

Up-lighting suits:

• Textured surfaces: stone cladding, exposed brick, fluted concrete, and timber

• Vertical features: entrance pillars and structural columns

• Boundary walls, where added visual height is welcome

Down-Lighting: For Safety, Calm, and Clean Walls

Down-lighting mounts the fixture high and washes light toward the ground. It is the safer default for entrances, porches, and circulation routes because it lights the surface people actually walk on, without pushing glare to eye level. On smooth painted walls, down-lighting also looks cleaner than up-lighting, which would only emphasise that there is no texture to reveal.

The signature of a down-light is the soft scallop of light it drops on the wall and floor below. Spaced correctly, a run of down-lights creates a calm, even rhythm along a corridor or compound wall. This is the technique to reach for when the goal is comfort and wayfinding rather than drama.

Down-lighting suits:

• Entrances, porches, and thresholds where footing matters

• Walkways and circulation routes around the building

• Smooth painted walls that have no texture to reveal

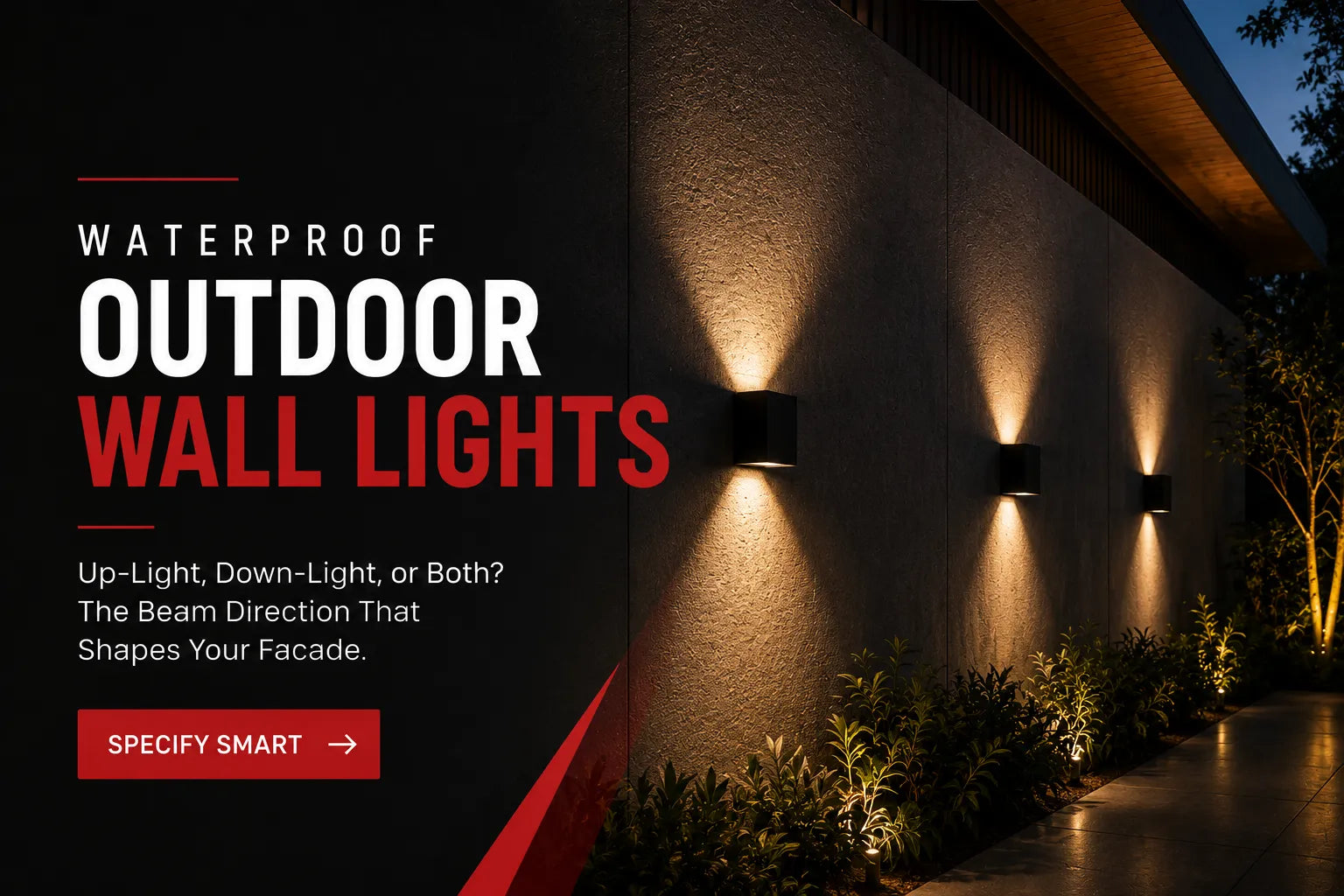

Up-and-Down Wall Lights: The Contemporary Default

Up-and-down fixtures throw two beams from a single body, one upward and one downward, producing a symmetrical hourglass of light. They have become the standard specification for contemporary Indian facades because they deliver rhythm. A row of them along a boundary wall or balcony line creates a repeating pattern that defines the elevation at night.

The detail that makes or breaks this look is beam width. A tight vertical blade of light, around 10 to 30 degrees each way, produces crisp, architectural lines. A wide beam blurs into a soft glow that loses the rhythm. For a designed result, specify the narrow option and space the fixtures so the beams do not collide.

Glare Control: The Detail That Separates Premium From Ordinary

Glare is the fastest way to make an expensive facade look cheap. If you can see the raw LED from across the street, the fixture is poorly designed, whatever its finish looks like in daylight. Quality waterproof outdoor wall lights hide the light source so you see the effect of the light and not the source.

A well-designed fixture conceals its LED behind one of three things:

• A recessed lens, set deep enough that the source is not visible at eye level

• An internal baffle that blocks the direct view of the diode

• A frosted diffuser that spreads the light and softens the source

Colour temperature is part of the same problem. For homes, a warm white in the 2700K to 3000K range flatters stone, brick, and wood, and feels welcoming. Cooler 4000K light can look harsh on a residential facade. The 2026 shift in Indian interiors away from cool white toward warm tones applies just as strongly outdoors.

Specifying for Indian Conditions: IP Rating Meets Direction

Beam direction changes how a fixture is exposed to weather, so it changes the IP rating you need. An up-light sits low, close to splashing rain, irrigation, and standing water, and will collect moisture in its housing if drainage is poor. It needs a higher ingress rating than a down-light tucked under an eave.

As a working rule, sheltered down-lights are safe at IP54 to IP65, while up-lights and any fully exposed fixture should be IP65 or higher. Coastal Mumbai homes facing salt-laden air and dust-heavy Delhi sites both push that requirement upward. This is where construction quality matters: Pasolite builds its waterproof outdoor wall lights from corrosion-resistant Jindal and Hindalco-grade aluminium and puts every fixture through a 48-hour continuous burn test before dispatch, so the rating on the box still holds after several monsoons.

Beam Direction at a Glance

A Worked Example: A Bangalore Villa Facade

Consider a double-height villa in Bangalore with a granite-clad boundary wall, a recessed main entrance under a deep eave, and four exposed facade columns. A direction-led plan specifies three fixture behaviours, not one:

1. Granite boundary wall: narrow-beam up-lights at IP65, to rake light across the stone and reveal its texture.

2. Sheltered main entrance: down-lights at IP54 under the eave, to light the threshold safely without glare.

3. Facade columns: up-and-down fixtures with a tight 20-degree beam, spaced about three metres apart.

All in warm 3000K white. The facade looks composed at night because the lighting was specified by direction, not bought by wattage.

Light the Facade You Already Designed

A facade does not need more light. It needs light pointed in the right direction. Once beam direction is part of the specification, waterproof outdoor wall lights stop being a hardware purchase and become a design decision, the one that decides how the building looks for every evening of its life.

Pasolite manufactures its full outdoor range in-house in Bangalore, with beam options, finishes, and IP ratings suited to Indian facades.
